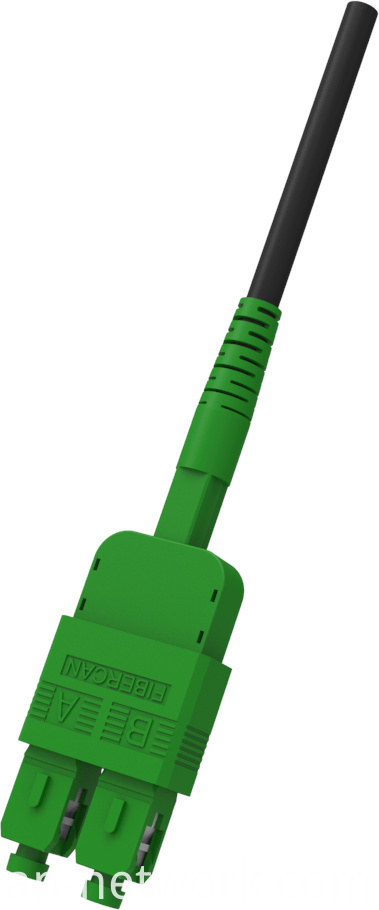

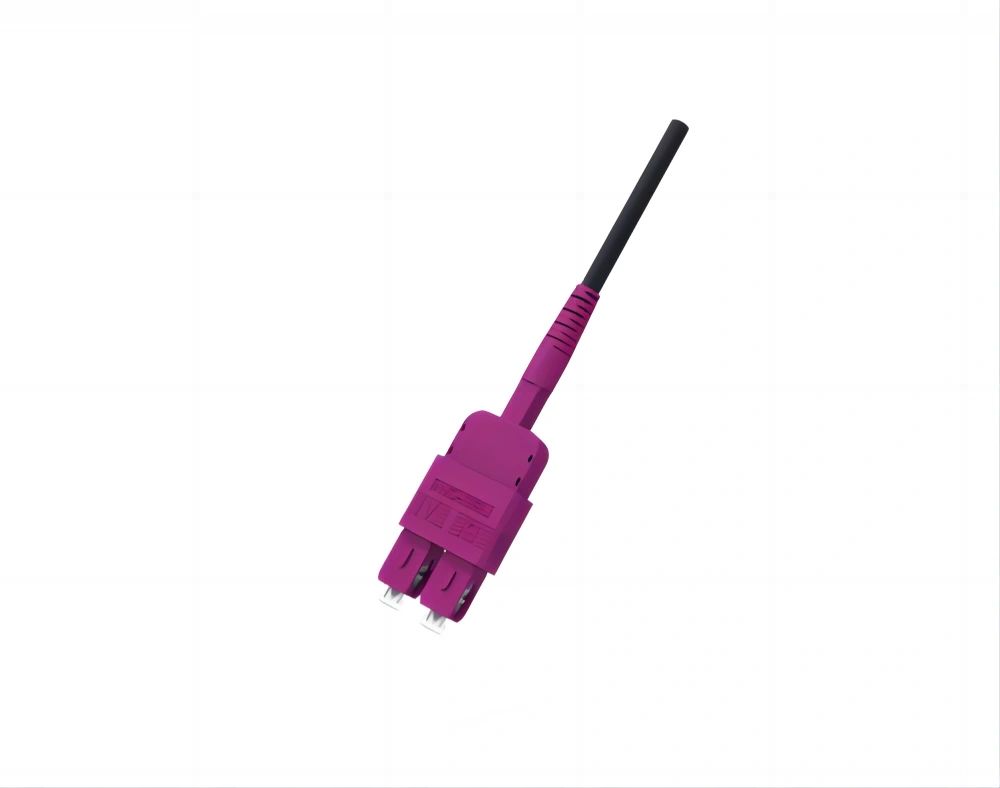

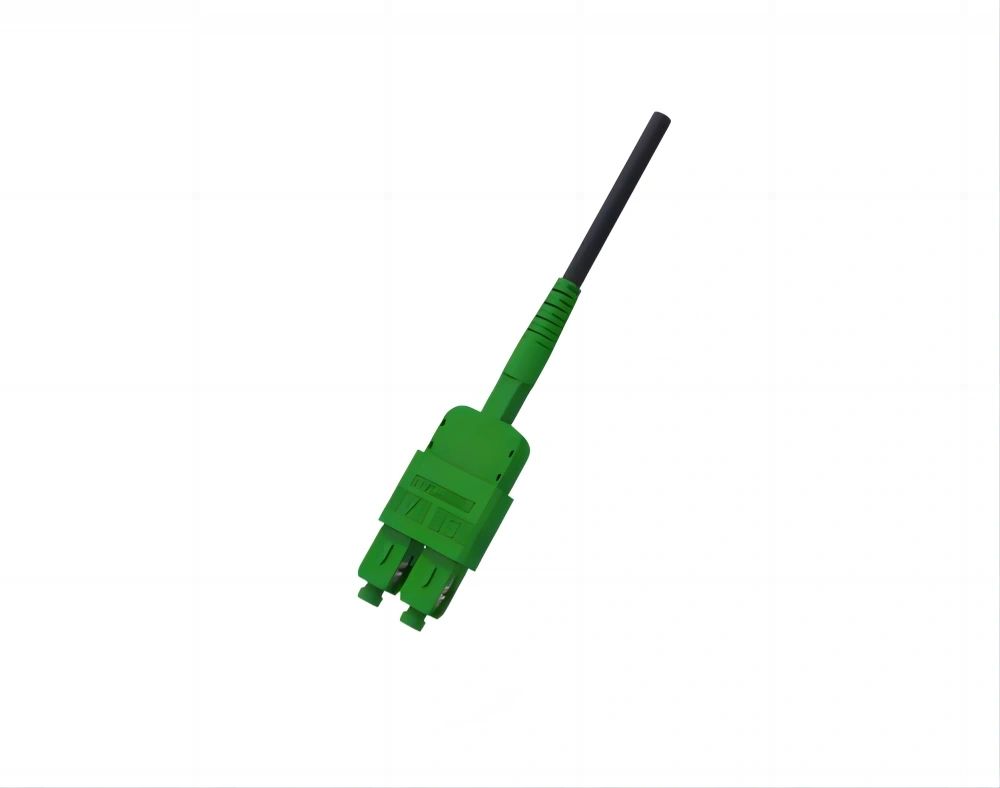

SC Uniboot Fiber Optic Connector

Product Attributes

Model No.

:

SC Fiber Optic Connector

Brand

:

Fibercan

Species

:

Backshell

Place Of Origin

:

China

Packaging & Delivery

Selling Units: Piece/Pieces

Package Type: Carton

Product Description

Connector Type: SC/APC SC/UPC SC/PC(Multimode)

Suitable Cable Type: Duplex Indoor Optical Cable

Suitable Cable Diametre: 2.0-5.0mm

Fiber Type: Singlemode OS2, Multimode OM1, Multimode OM2, Multimode OM3, Multimode OM4, Multimode OM5

Coupling Tensile: 80N for 2.0mm and 100N for 3.0-5.0mm

Standard compliance: IEC, GR-326, RoHs, Reach Compliance

Quality Level: Grade A/1, Grade B/1, Grade C

Test Standard:

1. Endface: IEC 61300-3-35

2. Optical Performance: IEC 61300-3-34

3. Mechanical Tensile: IEC 61300-2-6, IEC 61300-2-4

4. Durability: IEC 61300-2-2

5. Vibration: IEC 61300-2-1

6. Torsion: IEC 61300-2-5

7. Drop: IEC 61300-2-12(Method A)

8. Static Load: IEC 61300-2-42

9. Flex: GR‐326‐CORE, 4.4.3.2

10. Cold Test: IEC 61300-2-17

11. Dry Heat: IEC 61300-2-18

12. Damp Heat: IEC 61300-2-19

13. Temperature Change: IEC 61300-2-22

14. Damp Heat: IEC 60068-2-30

15. Salt Mist: IEC 61300-2-26

16. Humidity Cycling: IEC 61300-2-21

17. Dust: IEC 61300-2-27

18. Cable Bend: IEC 60794-1-21

Looking for ideal SC Fiber Optic Connecter Manufacturer & supplier ? We have a wide selection at good prices to help you get creative. All the Fiber Optic Connector are quality guaranteed. We are China Origin Factory of Uniboot Fiber Optic Connector. If you have any question, please feel free to contact us.
