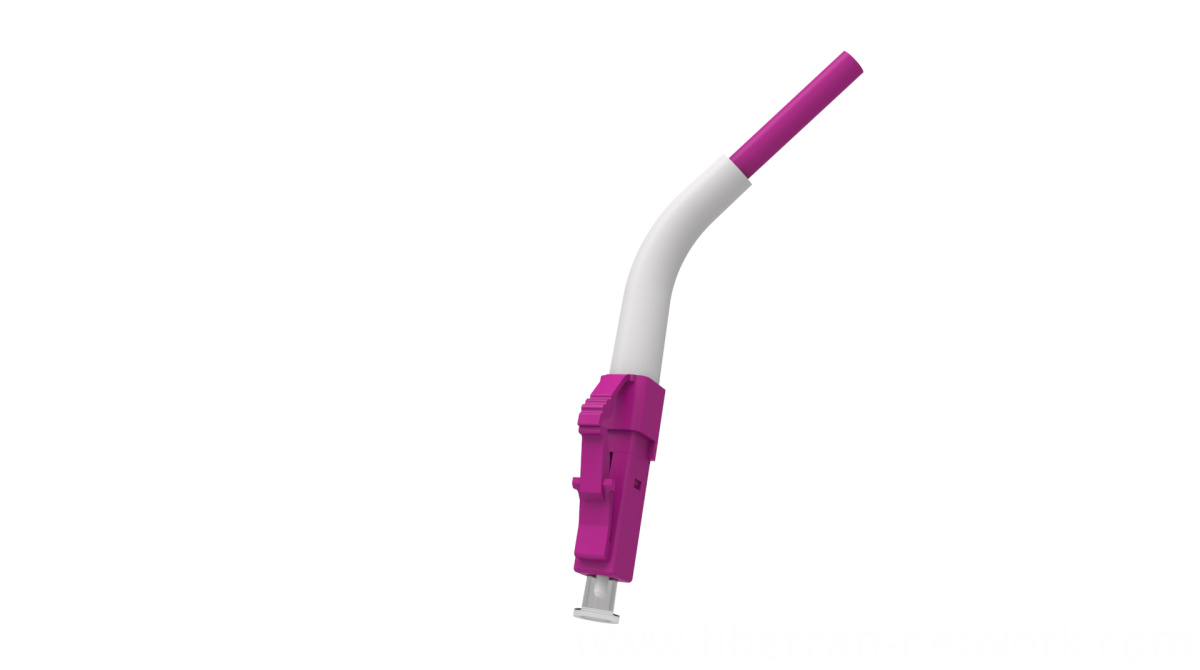

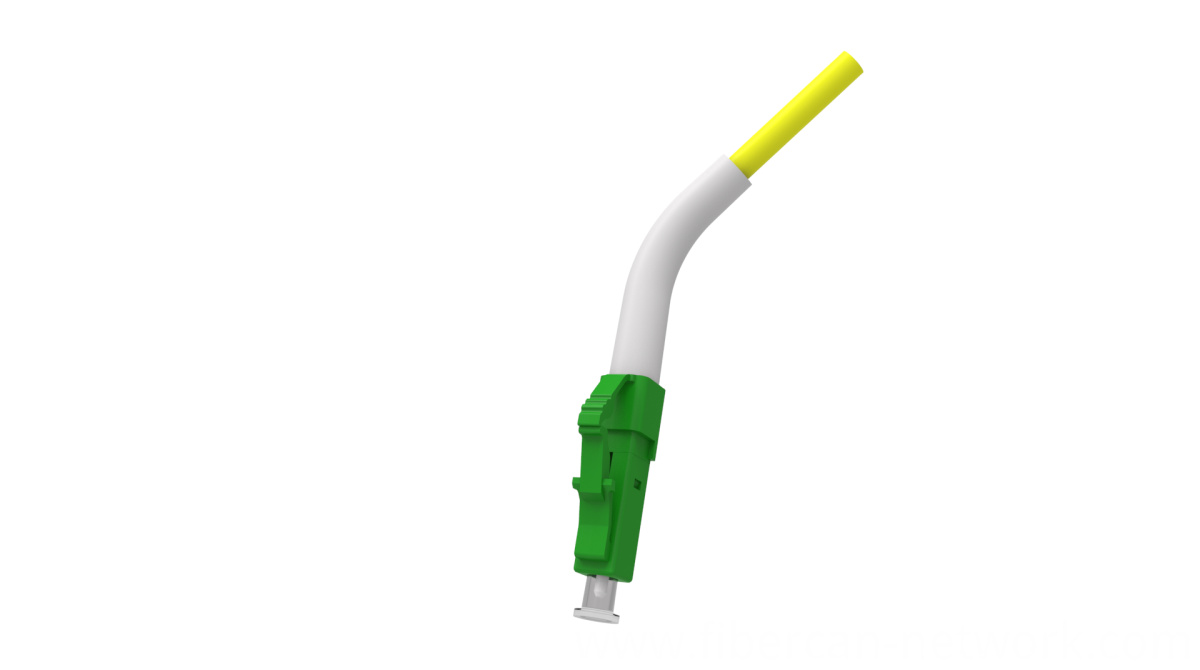

LC Fiber Optic Connector with 45°Angle Boot

Product Attributes

Model No.

:

LC Fiber Optic Connector

Brand

:

Fibercan

Species

:

Backshell

Place Of Origin

:

China

Packaging & Delivery

Selling Units: Piece/Pieces

Package Type: Carton

Product Description

Connector Type: LC/APC LC/UPC LC/PC(Multimode)

Suitable Cable Type: Simplex or Duplex Indoor Optical Cable

Suitable Cable Diametre: 2.0-3.0mm

Fiber Type: Singlemode OS2, Multimode OM1, Multimode OM2, Multimode OM3, Multimode OM4, Multimode OM5

Coupling Tensile: 70N for 2.0mm Connector and 80N for 3.0mm Connector

Standard compliance: IEC, GR-326, RoHs, Reach Compliance

Quality Level: Grade A/1, Grade B/1, Grade C

Test Standard:

1. Endface: IEC 61300-3-35

2. Optical Performance: IEC 61300-3-34

3. Mechanical Tensile: IEC 61300-2-6, IEC 61300-2-4

4. Durability: IEC 61300-2-2

5. Vibration: IEC 61300-2-1

6. Torsion: IEC 61300-2-5

7. Drop: IEC 61300-2-12(Method A)

8. Static Load: IEC 61300-2-42

9. Flex: GR‐326‐CORE, 4.4.3.2

10. Cold Test: IEC 61300-2-17

11. Dry Heat: IEC 61300-2-18

12. Damp Heat: IEC 61300-2-19

13. Temperature Change: IEC 61300-2-22

14. Damp Heat: IEC 60068-2-30

15. Salt Mist: IEC 61300-2-26

16. Humidity Cycling: IEC 61300-2-21

17. Dust: IEC 61300-2-27

18. Cable Bend: IEC 60794-1-21

Looking for ideal LC/APC Fiber Optic Connector With 45-degree Boot Manufacturer & supplier ? We have a wide selection at good prices to help you get creative. All the LC/UPC Fiber Optic Connector with 45-degree Boot are quality guaranteed. We are China Origin Factory of LC/APC Optical Fiber Connecter. If you have any question, please feel free to contact us.
