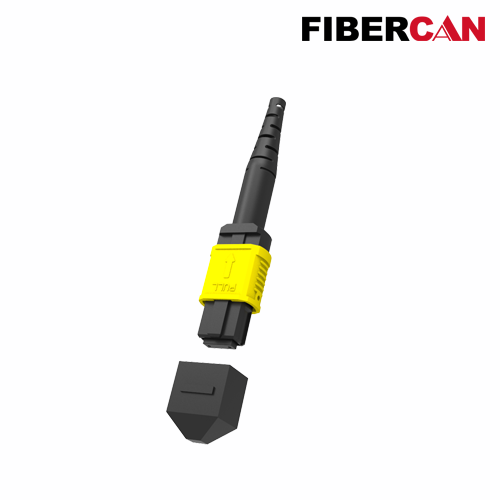

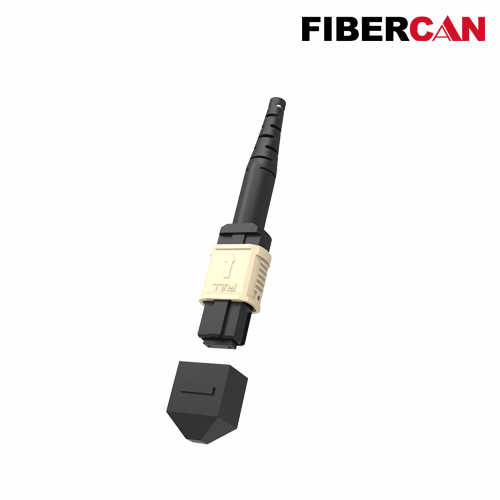

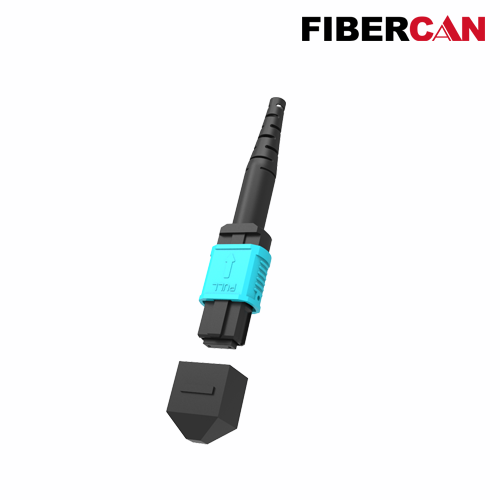

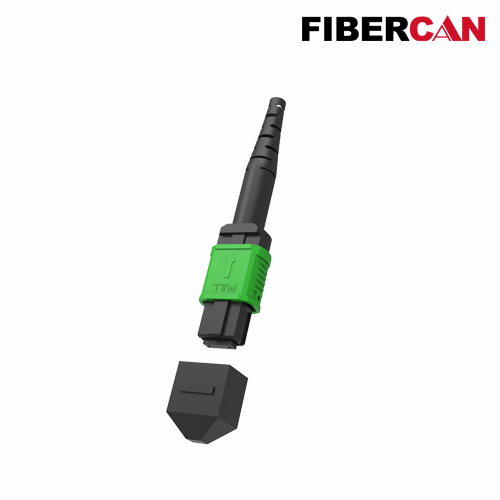

MPO Fiber Optical Connector

Product Overview

       To further expand Fibercan connector family and maintain high quality and consistency of our  products, we has come up with our own brand new MPO connector series with same function  for high-density cabling, high-speed transmission, space saving, and reliability.

Features

Push-pull mechanism for best handling and high packing density.

One-piece design for easy and termination.

High mechanical and thermal resistance according to Telcordia GR1435.

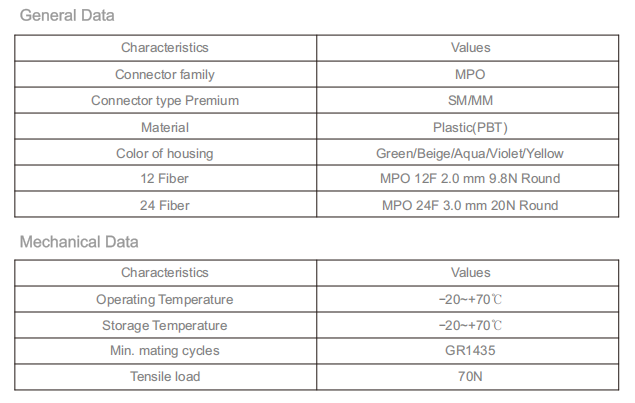

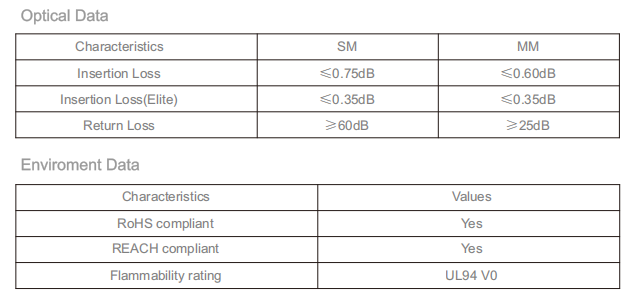

Technical Data

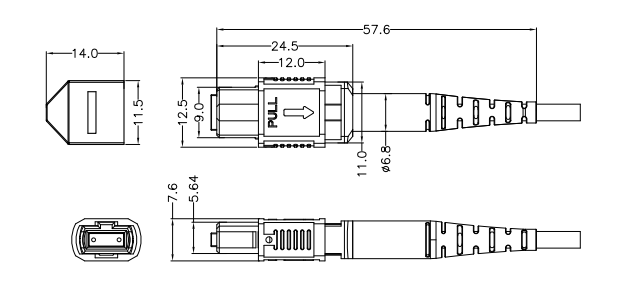

Mechanical Diagram(unit:mm)

Other Reuqirement

Applicable Standards

  Optical interface Standard

                                            IEC 61755-3-31              Part 3-31: Optical interface – 8 degrees angled PC end-face  PPS rectangular ferrule, single mode fiber

  Interface Standard

                                            IEC 61754-7 Part 7: Type MPO connector family

                                            IEC 61754-7 Part 7: Type MPO connector family

                                            TIA-604-5 Fiber Optic Connector Intermateability Standard, Type MPO

  Test and measurement

                                           IEC 61300-3-35 Part 3-35: Examinations and measurements – Fiber optic  connector endface visual and automated inspection

                                           Telcordia GR-1435 Generic Requirements for Multi-Fiber Optical Connectors
