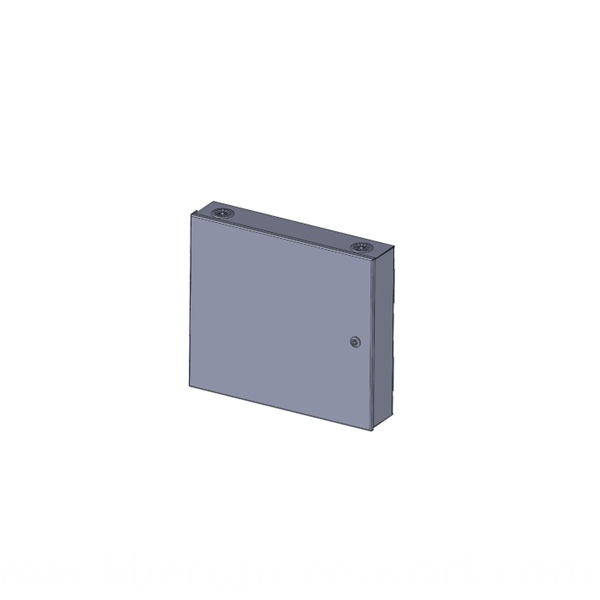

Fiber Optic Metal Wall Box

Product Attributes

Model No.

:

12F-192F

Brand

:

Fibercan

Species

:

Backshell

Place Of Origin

:

China

Packaging & Delivery

Selling Units: Piece/Pieces

Package Type: Carton

Product Description

Fiber Capacity: 12-192 Fiber

Connector Type: SC/APC, SC/UPC, LC/APC, LC/UPC standard connector or field connector

Splitter Capacity: 1x4, 1x8, 1x16, 1x32, 1x64 PLC Splitter up to 192 Fiber

Connector Standard: Grade B/1, Insertion Loss less than 0.25db

Adaptor Type: SC Simplex or LC Duplex

Drop Cable Capacity: 3-5mm Round Drop Cable(4pcs)，Flat Drop Cable 2*3mm

IP Rating：IP 65(Outdoor), IP55(Indoor)

Material：Metal

Application：Outdoor/Indoor FTTH,FTTx

Mounting Method：Wall Mounted

RoHS, Reach Compliance

Package: One piece per paper box, full equiped or empty

Pigtail Inspection Standard:

1. Endface: IEC-61300-3-351.

2. Optical Performance: IEC-61300-3-34

3.Mechanical Tensile: IEC-61300-2-6,IEC-61300-2-4

4.Durability: IEC 61300-2-2

5.Vibration: IEC 61300-2-1

6.Torision: IEC 61300-2-5

7.Drop IEC 61300-2-12(Method A)

8.Static Load：IEC 61300-2-42

9.Flex: GR‐326‐CORE, 4.4.3.2

10.Cold Test: IEC 61300-2-17

11.Dry Heat: IEC 61300-2-18

12.Damp Heat: IEC 61300-2-19

13.Temperature Change: IEC 61300-2-22

14.Damp Heat: IEC 60068-2-30

15.Salt Mist: IEC 61300-2-26

16.Humidity Cycling: IEC 61300-2-21

17.Dust：IEC 61300-2-27

18.Cable Bend：IEC 60794-1-21

Looking for ideal Outdoor/ Indoor FTTH Manufacturer & supplier ? We have a wide selection at good prices to help you get creative. All the Fiber Optic Metal Wall are quality guaranteed. We are China Origin Factory of Wall Mounted Fibre Termination Box. If you have any question, please feel free to contact us.
