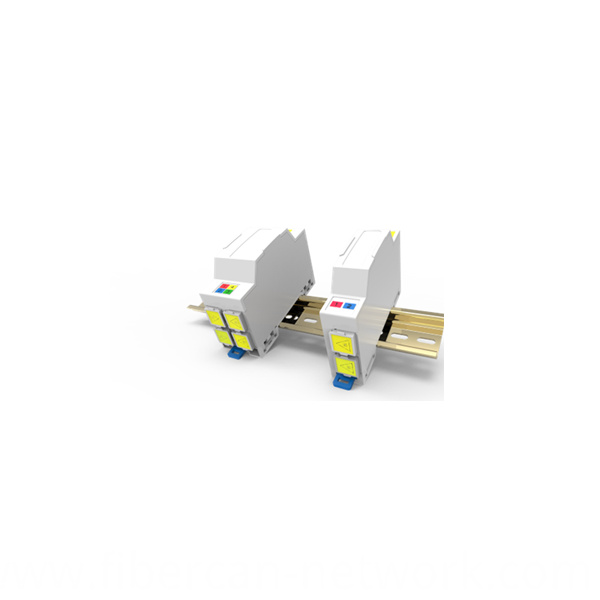

Fiber Optic Din Rail Module

Product Attributes

Model No.

:

4F

Brand

:

Fibercan

Species

:

Backshell

Place Of Origin

:

China

Packaging & Delivery

Selling Units: Piece/Pieces

Package Type: Carton

Product Description

Fiber Capacity: 1 Fiber, 2 Fiber, 4 Fiber

Connector Type: SC/APC, SC/UPC, LC/APC, LC/UPC

Connector Standard: Grade B/1, Insertion Loss less than 0.25db

Adaptor Type: SC Simplex with outter shutter

Drop Cable Capacity: 3-5mm Round Drop Cable，Micro-bundle Drop Cable，Pre-terminated Drop Cable 10-120M

IP Rating：IP 55

Material：ABS+PC

Application：Indoor FTTH,FTTx

Mounting Method：Wall Mounted or Din Rail Mounted

RoHS, Reach Compliance UL-94-V0

Package: One piece per paper box, full equiped or empty

Pigtail Inspection Standard:

1. Endface: IEC-61300-3-351.

2. Optical Performance: IEC-61300-3-34

3.Mechanical Tensile: IEC-61300-2-6,IEC-61300-2-4

4.Durability: IEC 61300-2-2

5.Vibration: IEC 61300-2-1

6.Torision: IEC 61300-2-5

7.Drop IEC 61300-2-12(Method A)

8.Static Load：IEC 61300-2-42

9.Flex: GR‐326‐CORE, 4.4.3.2

10.Cold Test: IEC 61300-2-17

11.Dry Heat: IEC 61300-2-18

12.Damp Heat: IEC 61300-2-19

13.Temperature Change: IEC 61300-2-22

14.Damp Heat: IEC 60068-2-30

15.Salt Mist: IEC 61300-2-26

16.Humidity Cycling: IEC 61300-2-21

17.Dust：IEC 61300-2-27

18.Cable Bend：IEC 60794-1-21

Looking for ideal Fiber Optic Din Rail Manufacturer & supplier ? We have a wide selection at good prices to help you get creative. All the DIN Rail Fiber Optic Modules are quality guaranteed. We are China Origin Factory of DIN Rail Fiber Optic Connector Module. If you have any question, please feel free to contact us.
