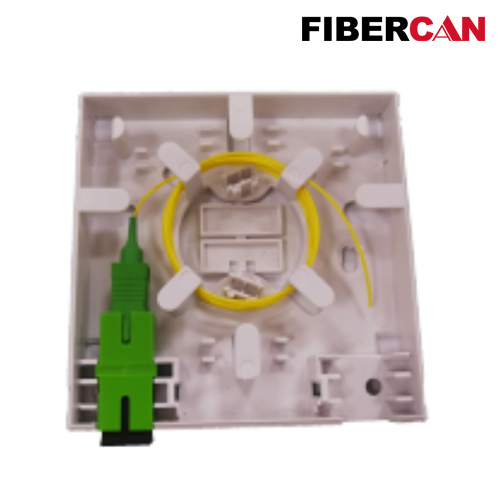

Fiber Termination Wall Box (86)

86 wall box is able to hold up to 2 subscribers. It is used as a termination point for the drop cable to  connect with patch cable in FTTH indoor application. It integrates fiber splicing, termination, storage  and cable connection in one solid protection box.

Configuration

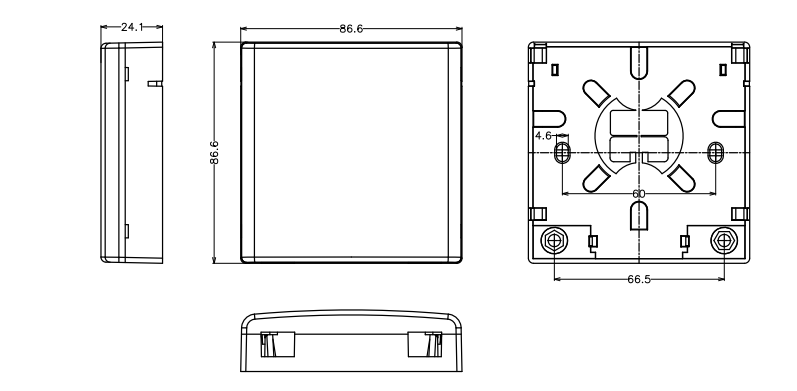

Mechanical Diagram(unit:mm)

Features

Dust-proof design with IP-45 Protection level.

Integrated with splice cassette and cable management rods

Manage fibers in a reasonable fiber radius condition.

Easy to maintain and extend the capacity

Suitable for the fusion splice or mechanical splice.

Embedded type surface, easy for installation and removal.

2 ports cable entrance for patch cable.
