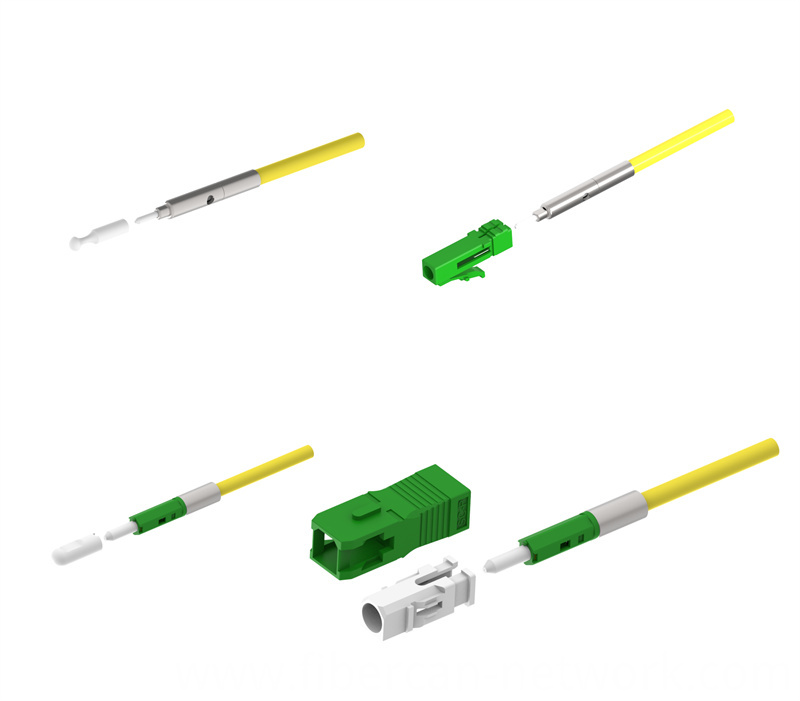

Pre-terminated LC and SC Ferrule Unit

Product Attributes

Model No.

:

LC,LC/APC, LC/UPC

Brand

:

Fibercan

Species

:

Backshell

Place Of Origin

:

China

Packaging & Delivery

Selling Units: Piece/Pieces

Package Type: Carton

Product Description

Connector Type: LC/APC SC/APC

Cable Type: Round Drop Cable

Cable Diametre: 2.0mm-5.0mm

Application: Mini size polished ferrule for compact application in micro pipe

Fiber Type: Singlemode G652D, Singlemode G657A1, Singlemode G657A2, Singlemode G657B3

Sheath Material: PE, TPE, LSZH, PVC, OFNR, OFNP

Standard compliance: IEC, Telcordia, RoHs Reach Compliance

Quality Level: Grade A/1, Grade B/1, Grade C

Test Standard:

1. Endface: IEC 61300-3-35

2. Optical Performance: IEC 61300-3-34

3. Mechanical Tensile: IEC 61300-2-6, IEC 61300-2-4

4. Durability: IEC 61300-2-2

5. Vibration: IEC 61300-2-1

6. Torsion: IEC 61300-2-5

7. Drop: IEC 61300-2-12(Method A)

8. Static Load: IEC 61300-2-42

9. Flex: GR‐326‐CORE, 4.4.3.2

10. Cold Test: IEC 61300-2-17

11. Dry Heat: IEC 61300-2-18

12. Damp Heat: IEC 61300-2-19

13. Temperature Change: IEC 61300-2-22

14. Damp Heat: IEC 60068-2-30

15. Salt Mist: IEC 61300-2-26

16. Humidity Cycling: IEC 61300-2-21

17. Dust: IEC 61300-2-27

18. Cable Bend: IEC 60794-1-21

Looking for ideal Air Blown Fiber Manufacturer & supplier ? We have a wide selection at good prices to help you get creative. All the SC Ferrule Unit are quality guaranteed. We are China Origin Factory of Air Blown Pipe. If you have any question, please feel free to contact us.
