Model No.: MFD FA
Brand: Fibercan
place of origin: China
| Selling Units: | Piece/Pieces |
| Package Type: | Carton |
Mode Field Conversion Fiber Arrays provide a low-loss coupling solution for waveguides with smaller mode field diameters (MFD). For example, the process involves splicing a 3.2μm MFD fiber to a standard 8.6μm MFD fiber to achieve efficient mode field conversion. By utilizing high-precision V-grooves and proprietary assembly techniques, fibers with different MFDs are securely aligned and fixed in the array. This ensures superior reliability throughout the mode field conversion process.
Features
◆Simplified structure enables direct interfacing with laser diodes and optical fiber links
◆Supports fibers with various numerical apertures (MFD: 3μm/3.5μm/4μm/6.4μm, etc.)
◆Scalable from single-channel to multi-channel (1×N) configurations
◆Compliant with GR-1209, GR-1221 & RoHS
Applications
◆Multi-Channel Optical Integrated Transceiver Module
◆Optical Waveguide Coupling

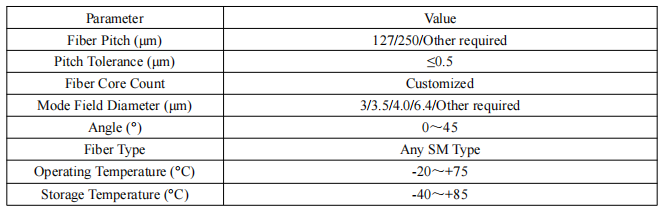

Specifications
