Model No.: MT-2 FA
Brand: Fibercan
place of origin: China
| Selling Units: | Piece/Pieces |
| Package Type: | Carton |
This product is designed for parallel transmission in optical transceiver modules, supporting interfaces such as 100G PSM4 for external port connectivity. It achieves total internal reflection (TIR) at the end face by polishing the fiber array into a 42.5° angled mirror. With low-loss MT ferrules and V-groove pitch tolerance controlled within ±0.5μm, it provides the most compact parallel connectivity solution for optical transceiver modules.
Features
◆0.35dB ultra-low loss
◆High precision
◆High repeatability and stability
◆Comply with TIA/IEC standards
◆Comply with GR-1209、GR1221 and RoHS standards
Applications
◆100G PSM high-speed optical module
◆400G DR4 high-speed optical module

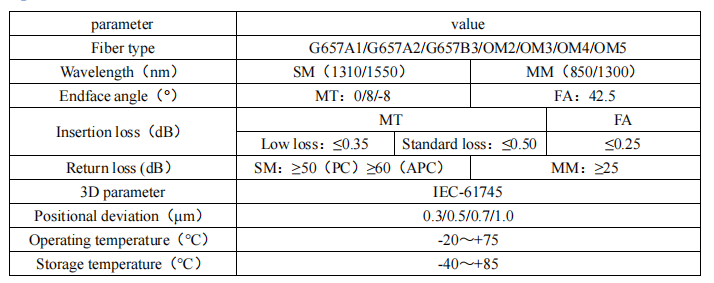

Specifications
