SC Fiber Optic Patch Cord

Product Description

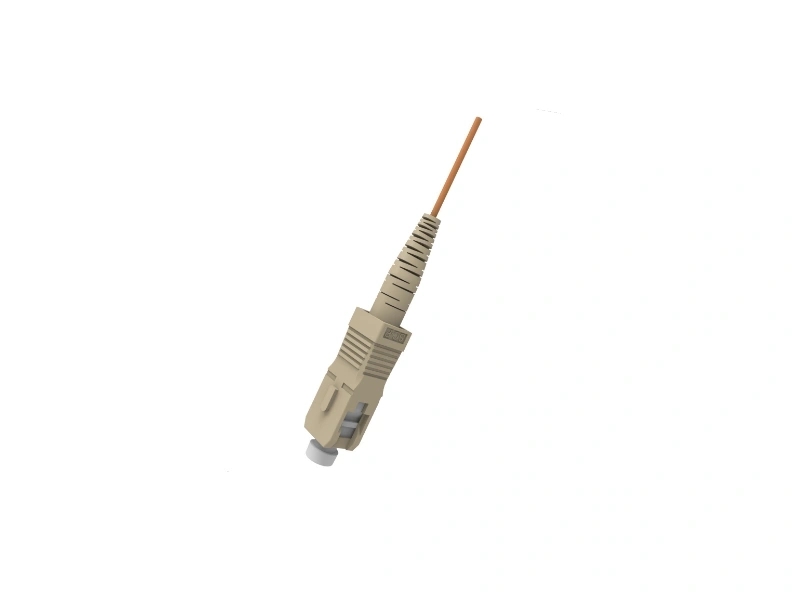

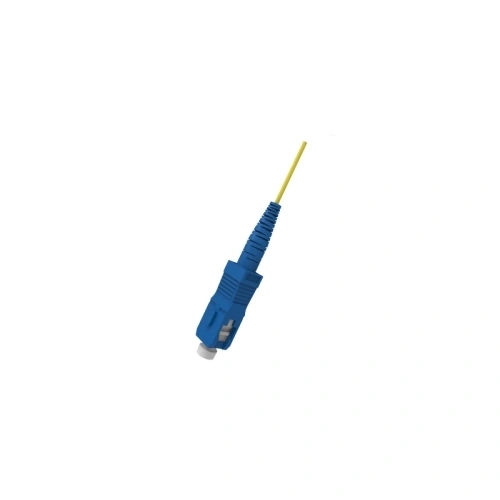

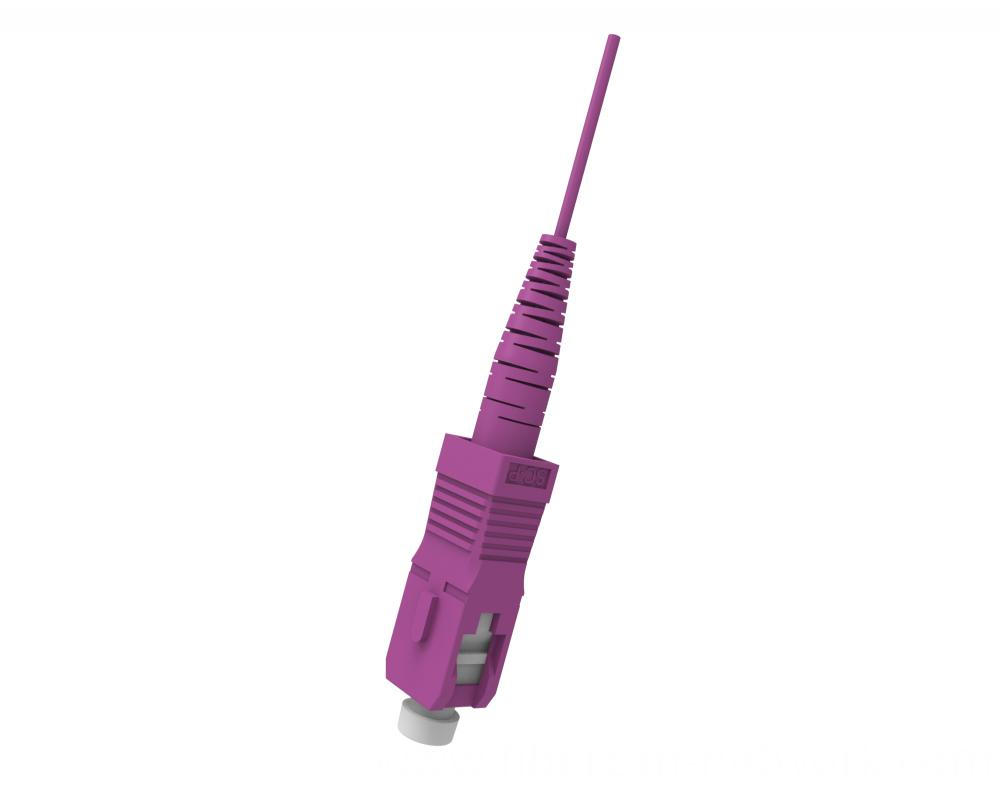

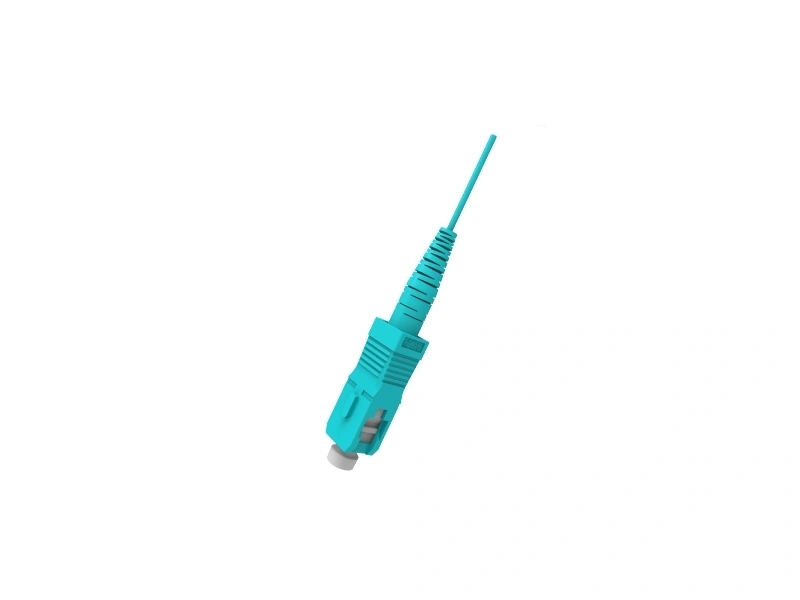

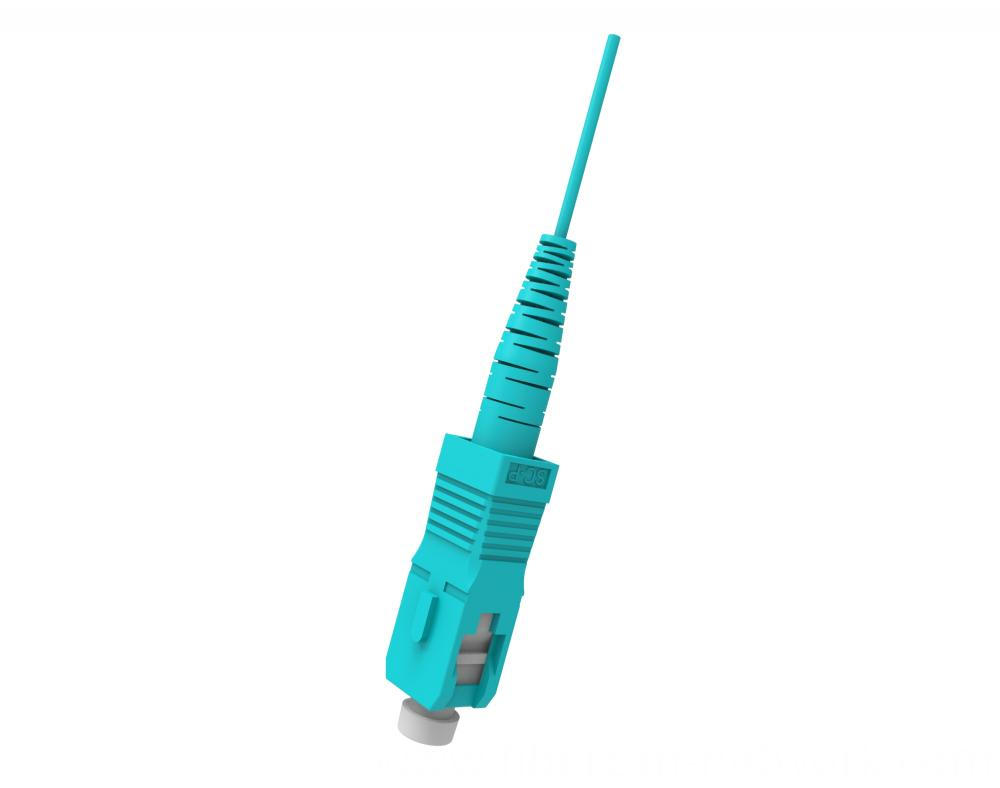

SC Fiber Optic Patch Cord

Product Name: Patch Cord, Patch Lead, Jumper

Connector Type: SC/APC(8°or 9°), SC/UPC(SM), SC/PC(MM)

Cable Type: Simplex or Duplex

Cable Diametre: 1.2mm-5.0mm

Fiber Type: OS2 OM1 OM2 OM3 OM4 OM5

Sheath Material: LSZH, PVC, TPU, TPE, OFNR, OFNP

Standard Compliance: IEC, Telcordia, RoHs, Reach Compliance

Quality Level: Grade A/1, Grade B/1, Grade C

Test Standard:

1. Endface: IEC 61300-3-35

2. Optical Performance: IEC 61300-3-34

3. Mechanical Tensile: IEC 61300-2-6, IEC 61300-2-4

4. Durability: IEC 61300-2-2

5. Vibration: IEC 61300-2-1

6. Torsion: IEC 61300-2-5

7. Drop: IEC 61300-2-12(Method A)

8. Static Load: IEC 61300-2-42

9. Flex: GR‐326‐CORE, 4.4.3.2

10. Cold Test: IEC 61300-2-17

11. Dry Heat: IEC 61300-2-18

12. Damp Heat: IEC 61300-2-19

13. Temperature Change: IEC 61300-2-22

14. Damp Heat: IEC 60068-2-30

15. Salt Mist: IEC 61300-2-26

16. Humidity Cycling: IEC 61300-2-21

17. Dust: IEC 61300-2-27

18. Cable Bend: IEC 60794-1-21

Looking for ideal SC/PC Fiber Optic Patch Cord Manufacturer & supplier ? We have a wide selection at good prices to help you get creative. All the SC Fiber Optic Patch Lead are quality guaranteed. We are China Origin Factory of SC Fiber Optic Jumper. If you have any question, please feel free to contact us.
