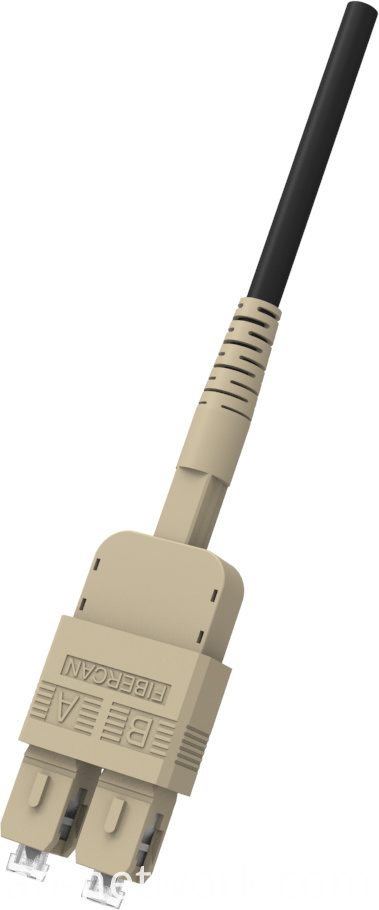

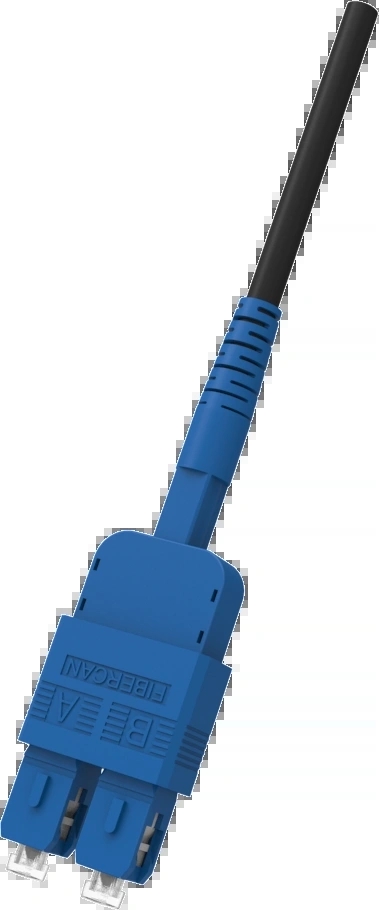

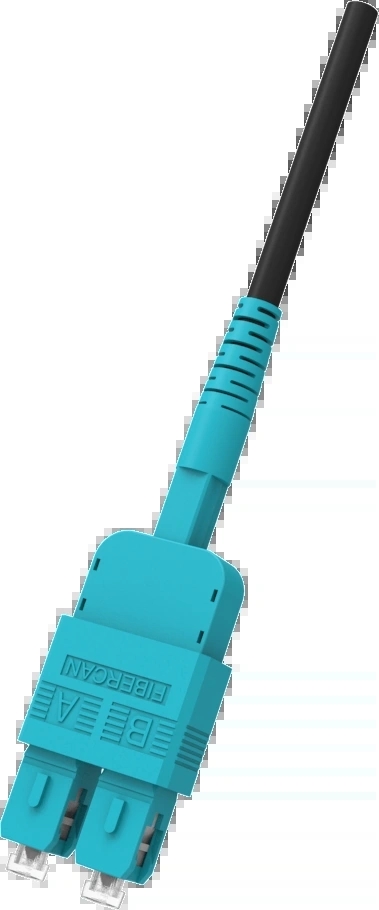

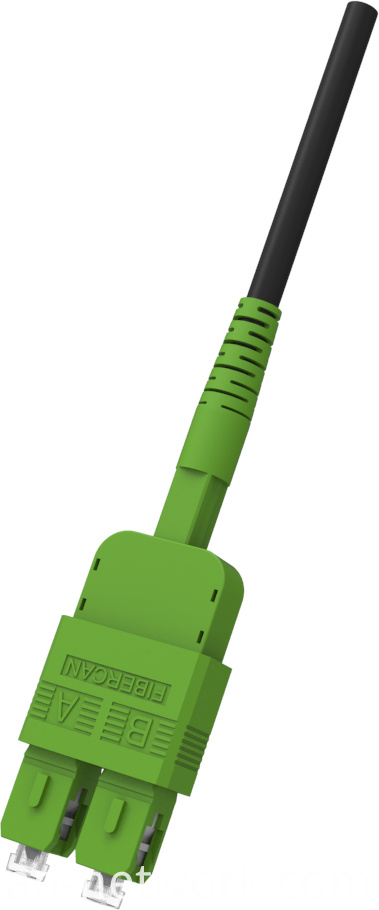

SC Uniboot Fiber Optic Patch Cord

Product Description

SC Uniboot Fiber Optic Patch Cord

Product Name: SC Uniboot Patch Cord, SC Uniboot Patch Lead, SC Uniboot Jumper

Connector Type: SC/APC(8°or 9°), SC/UPC(SM), SC/PC(MM)

Cable Type: Duplex

Cable Diametre: 2.0mm,3.0mm

Fiber Type: OS2 OM1 OM2 OM3 OM4 OM5

Sheath Material: LSZH,PVC,TPU,TPE,OFNR,OFNP

Standard Compliance: IEC, Telcordia, RoHs, Reach Compliance

Quality Level: Grade A/1,Grade B/1,Grade C

Test Standard:

1. Endface: IEC-61300-3-35

2. Optical Performance: IEC-61300-3-34

3. Mechanical Tensile: IEC-61300-2-6,IEC-61300-2-4

4. Durability: IEC 61300-2-2

5. Vibration: IEC 61300-2-1

6. Torsion: IEC 61300-2-5

7. Drop: IEC 61300-2-12(Method A)

8. Static Load: IEC 61300-2-42

9. Flex: GR‐326‐CORE, 4.4.3.2

10. Cold Test: IEC 61300-2-17

11. Dry Heat: IEC 61300-2-18

12. Damp Heat: IEC 61300-2-19

13. Temperature Change: IEC 61300-2-22

14. Damp Heat: IEC 60068-2-30

15. Salt Mist: IEC 61300-2-26

16. Humidity Cycling: IEC 61300-2-21

17. Dust: IEC 61300-2-27

18. Cable Bend: IEC 60794-1-21

Looking for ideal Fibre Optic Patch Pannel Manufacturer & supplier ? We have a wide selection at good prices to help you get creative. All the Fiber Optic Patch Pannel are quality guaranteed. We are China Origin Factory of Fibre Optical Patch Pannel. If you have any question, please feel free to contact us.
