Optical Cable Stranding Equipment

Product Attributes

Model No.

:

FBK-800-SZ

Brand

:

Fibercan

Strength Member

:

Ф1mm～Ф8mm

Maximum Diameter After Cable Formation

:

Ф20mm

Cable Pitch

:

(50～250)mm

Packaging & Delivery

Selling Units: Set/Sets

Package Type: Carton

Product Description

Part Number: FBK-800-SZ

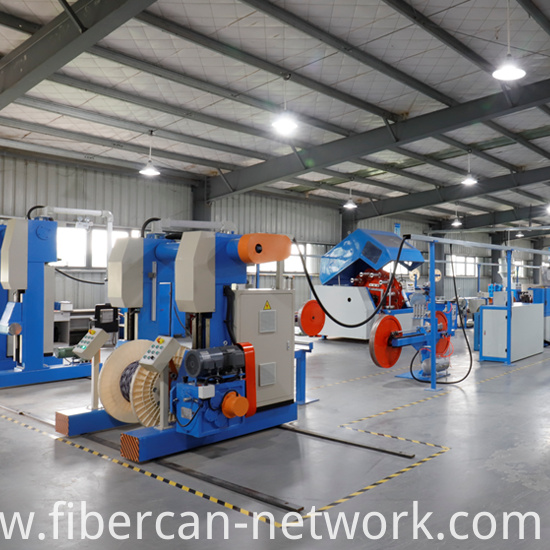

Product Name: Optical Cable Stranding Equipment

Product Range: Optical Cable Manufacturing Equipment

Application: The production line is used for the production of SZ stranded optical cable, and the SZ layer twisted optical cable with the outer diameter of the fiber bundle tube in the range of Φ1.5~Φ3.0mm can be manufactured.

1.Strength Member: Ф1mm～Ф8mm"

2.Maximum Diameter after Cable Formation: Ф20mm"

3. Loose tube diameter / quantity: (Ф1.5～Ф4.0)mm/6"

4.Production Line Structure Speed: 90m/min

5.Actual Production Line Speed (25mm pitch and 30mm cable pitch): 80m/min

6.Cable pitch: (50～250)mm

7.SZ Stranding Angle: ±(4～18)π

8.SZ Twisting Speed: Max 2000rpm"

9.Tie Structure Speed: Max 4000rpm"

10.Tie Yarn Pitch: 15～50mm"

11.Metre Error: ≤2‰"

12.Additional Attenuation Loss: ≤0.02db/km

13.Equipment color and direction: Customized

14.Power: 380v±5% 50Hz AC 3-phase 5-wire
