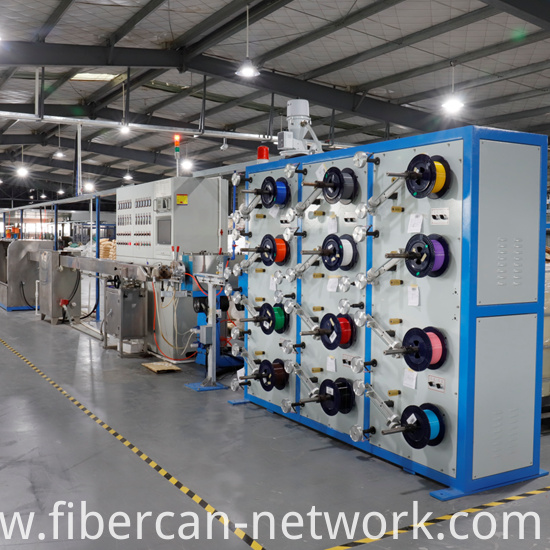

Loose Tube Secondary Coating Equipment

Product Attributes

Model No.

:

FBK-50-PBT

Brand

:

Fibercan

Actual Production Line Speed

:

20～600m/min（Ф1.8mm PBT Loose Tube）

Fiber Pay Off Tension

:

0.4～1.5N±0.05N

Packaging & Delivery

Selling Units: Set/Sets

Package Type: Carton

Product Description

Part Number: FBK-50-PBT

Product Name: Loose Tube Secondary Coating Equipment

Product Range: Optical Cable Manufacturing Equipment

Application: Applied in production of FTTH 2-12 core PBT tube, the extrusion material is PBT. The extruded sheath possesses the features of even diameter, smooth, fast speed

1.Fiber Counts: 2~12 Fiber"

2.Fiber Pay Off Tension: 0.4～1.5N±0.05N

3.Fiber Pay Off Bobbin Size 1: Ф236×Ф160×108 mm"

4.Fiber Pay Off Bobbin Size 2: Ф236×Ф160×236 mm

5.Water Temprature : 10～70℃"

6.Take Up Tension: 2.5～8.0N"

7.Production Line Structure Speed: 600m/Min.

8.Actual Production Line Speed: 20～600m/Min.（Ф1.8mm PBT Loose Tube）

9.Overlength control:（0～3‰）±0.2‰

10.Metre Error: <1.5‰"

11.Take Up Bobbin Size: PN630mm PN800mm

12.Additional Attenuation Loss <0.02db/km（Singlemode Fiber）

13.Cable Outter Diameter and Length Uniformity: ≤±0.05、±0.2‰ "

14.Production Line Length: ≤39M

Looking for ideal Loose Tube Optical Fiber SZ Stranding Line Manufacturer & supplier ? We have a wide selection at good prices to help you get creative. All the Machines for Fiber Optical Cable Production are quality guaranteed. We are China Origin Factory of Optical Fiber SZ Stranding Line. If you have any question, please feel free to contact us.
