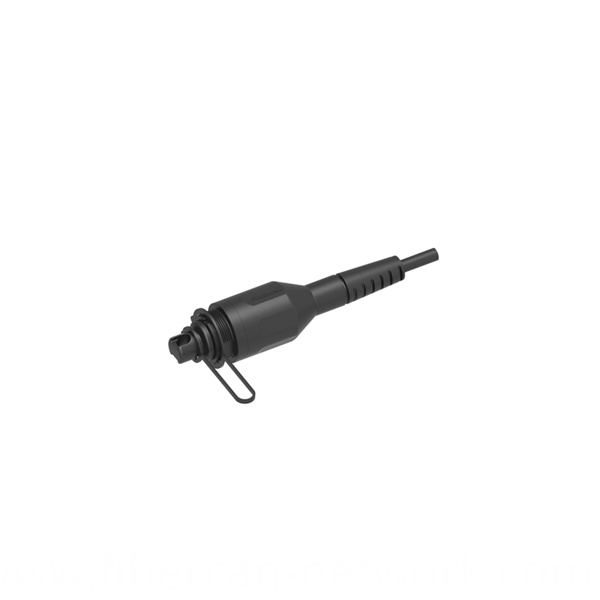

Toptap Female Cable Assembly

Product Attributes

Model No.

:

Toptap Female Cable Assembly

Brand

:

Fibercan

Species

:

Backshell

Place Of Origin

:

China

Packaging & Delivery

Selling Units: Piece/Pieces

Package Type: Carton

Product Description

Application: Fiber Optic IP68 Hardened Cable Assembly

Cable Type: Round Cable, Flat Cable or Figure 8 Drop Cable with messenger wire

Fiber Type: Singlemode G652D, Singlemode G657A2, Singlemode G657B3

Sheath Material: Low Friction LSZH, PE, PVC, OFNR, OFNP

Housing Material: PEI+30%FV

Connector Type: SC Simplex, LC Duplex, MTP and MPO

Compatible: Corning Optitap, Amphenol H-Connector

Quality Level: Grade B or Grade C

Standard compliance: IEC, Telcordia, RoHs, Reach Compliance

1. Endface: IEC-61300-3-35

2. Optical Performance: IEC-61300-3-34

3.Mechanical Tensile: IEC-61300-2-6,IEC-61300-2-4

4.Durability: IEC 61300-2-2

5.Vibration: IEC 61300-2-1

6.Torision: IEC 61300-2-5

7.Drop IEC 61300-2-12(Method A)

8.Static Load：IEC 61300-2-42

9.Flex: GR‐326‐CORE, 4.4.3.2

10.Cold Test: IEC 61300-2-17

11.Dry HEAT: IEC 61300-2-18

12.Damp Heat: IEC 61300-2-19

13.Temperature Change: IEC 61300-2-22

14.Damp Heat: IEC 60068-2-30

15.Salt Mist: IEC 61300-2-26

16.Humidity Cycling: IEC 61300-2-21

17.Dust：IEC 61300-2-27

18.Cable Bend：IEC 60794-1-21

Looking for ideal FTTA Ip68 Cable Assembly Cable Manufacturer & supplier ? We have a wide selection at good prices to help you get creative. All the Ftta Ip68 Cable Assembly Group are quality guaranteed. We are China Origin Factory of Sc Simplex Adapter. If you have any question, please feel free to contact us.
