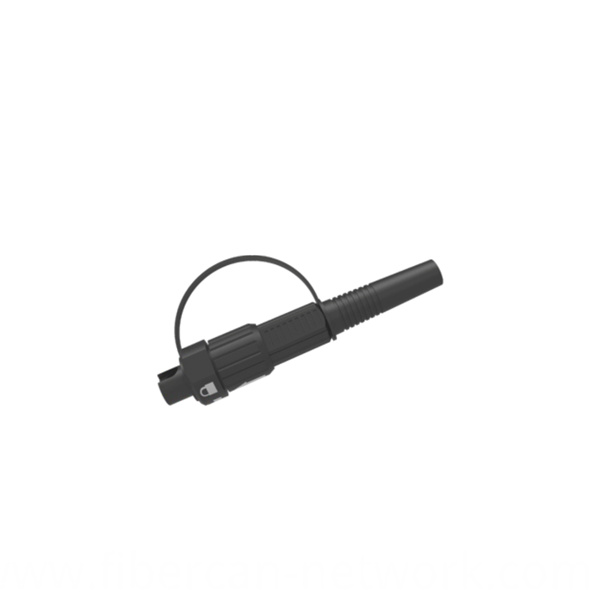

M-SC Male Cable Assembly

Product Attributes

Model No.

:

M-SC Male Cable Assembly

Brand

:

Fibercan

Place Of Origin

:

China

Species

:

Backshell

Packaging & Delivery

Selling Units: Piece/Pieces

Package Type: carton

Product Description

Application: Fiber Optic IP68 Hardened Cable Assembly

Cable Type: Round Cable, Flat Cable or Figure 8 Drop Cable with messenger wire

Fiber Type: Singlemode G652D,Singlemode G657A2,Singlemode G657B3

Sheath Material: Low Friction LSZH,PE,PVC,OFNR,OFNP

Housing Material: PEI+30%FV

Connector Type: SC Simplex,LC Duplex ,MTP and MPO

Compatible: Huawei Mini-SC

Quality Level: Grade B or Grade C

Standard compliance: IEC , Telcordia, RoHs ,Reach Compliance

Test Standard:

1. Endface: IEC-61300-3-35

2. Optical Performance:IEC-61300-3-34

3.Mechanical Tensile:IEC-61300-2-6,IEC-61300-2-4

4.Durability: IEC 61300-2-2

5.Vibration: IEC 61300-2-1

6.Torision: IEC 61300-2-5

7.Drop IEC 61300-2-12(Method A)

8.Static Load：IEC 61300-2-42

9.Flex: GR‐326‐CORE, 4.4.3.2

10.Cold Test: IEC 61300-2-17

11.Dry HEAT: IEC 61300-2-18

12.Damp Heat: IEC 61300-2-19

13.Temperature Change: IEC 61300-2-22

14.Damp Heat: IEC 60068-2-30

15.Salt Mist: IEC 61300-2-26

16.Humidity Cycling: IEC 61300-2-21

17.Dust：IEC 61300-2-27

18.Cable Bend：IEC 60794-1-21

Looking for ideal M-SC Female Cable Assembly Manufacturer & supplier ? We have a wide selection at good prices to help you get creative. All the Fiber Optic IP68 Hardened Cable Assembly are quality guaranteed. We are China Origin Factory of Ip68 Splice Box Holder. If you have any question, please feel free to contact us.
