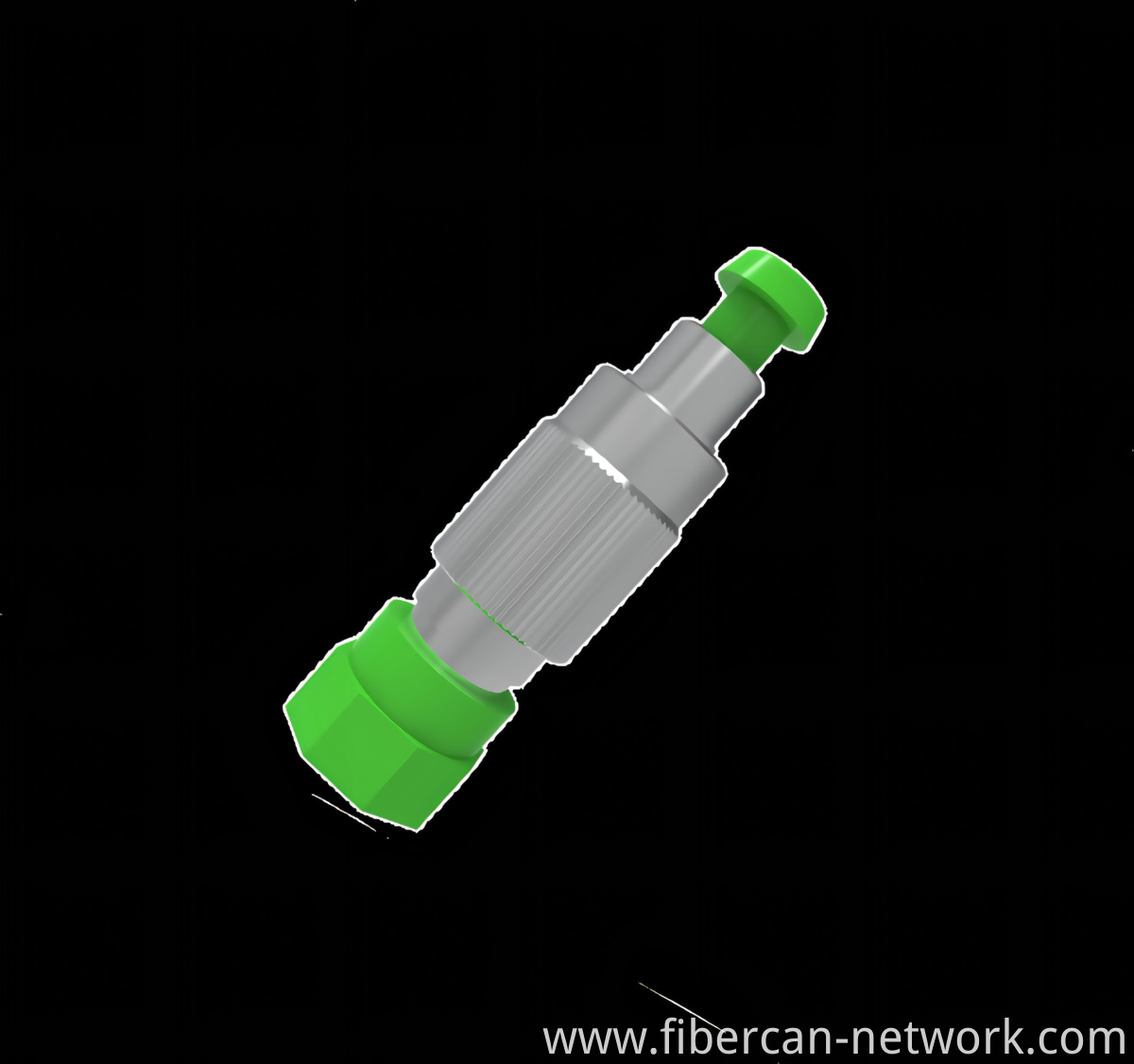

FC Fiber Optic Attenuator

Product Attributes

Model No.

:

FC/APC,FC/UPC

Brand

:

Fibercan

Place Of Origin

:

China

Packaging & Delivery

Selling Units: Piece/Pieces

Package Type: Carton

Product Description

Polishing Type: FC/APC FC/UPC

Housing Material: Metal

Attenuation: 1-25dB

Standard Compliance: IEC, Telcordia, RoHs, Reach Compliance

Attenuation Fiber Brand: CorActive, POFC, Optonest

Ceramic Ferrule Brand: China Chaozhou Three Circle(CCTC)

Optical Performance：0-5dB(±0.3dB), 6-10dB(±0.5dB), 11-25dB(±1dB)

Inspection Standard: IEC, GR-910-CORE, GR1221

1. Endface: IEC 61300-3-35

2. Optical Performance: IEC 61300-3-34

3. Mechanical Tensile: IEC 61300-2-6, IEC 61300-2-4

4. Durability: IEC 61300-2-2

5. Vibration: IEC 61300-2-1

6. Torsion: IEC 61300-2-5

7. Drop: IEC 61300-2-12(Method A)

8. Static Load: IEC 61300-2-42

9. Flex: GR‐326‐CORE, 4.4.3.2

10. Cold Test: IEC 61300-2-17

11. Dry Heat: IEC 61300-2-18

12. Damp Heat: IEC 61300-2-19

13. Temperature Change: IEC 61300-2-22

14. Damp Heat: IEC 60068-2-30

15. Salt Mist: IEC 61300-2-26

16. Humidity Cycling: IEC 61300-2-21

17. Dust: IEC 61300-2-27
