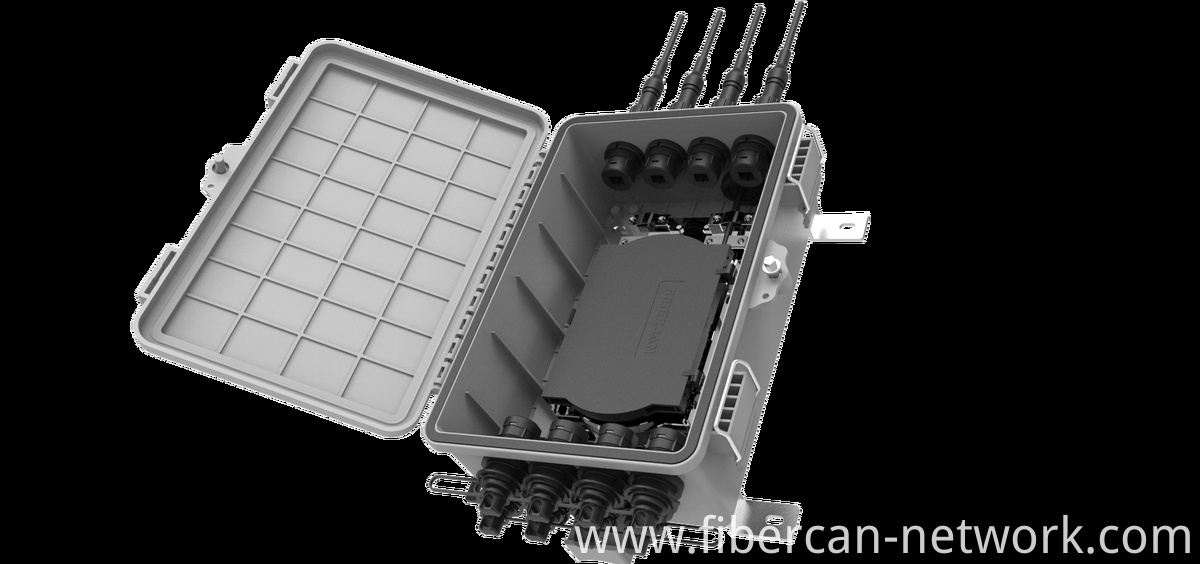

Fiber Optic IP68 Splice Box
Fiber Optic IP68 Splice Box
Fiber Optic IP68 Splice Box
Fiber Optic IP68 Splice Box

Fiber Optic IP68 Splice Box

Get Latest Price
Payment Type:
Incoterm:FOB,CIF,EXW,DDU,Express Delivery
Transportation:Ocean,Land,Air,Express
Supply Type:
Product Attributes

Model No.

Brand

place of origin

Packaging & Delivery
Selling Units:
Package Type:
Product Description
Product Description
Product Attributes
Packaging & Delivery
Product Description
Product Attributes

Model No.Fiber Optic IP68 Splice Box

BrandFibercan

speciesBackshell

place of originChina

Packaging & Delivery
Selling Units:Piece/Pieces
Package Type:Carton
Product Description
Fiber Splice Capacity: 4-24 Fiber
Splitter Capacity: 1x8 PLC Splitter
Incoming Cable: Outdoor Cable 4-24 Fiber
Connector Type: SC Simplex, LC Duplex, MTP/MPO in Toptap and M-SC Connector
Connector Standard: Insertion Loss<0.3db
Compatible Connectors: Corning Optitap,Huawei Mini-SC,Amphenol H-Connector
IP Rating: IP68
Material Type: ABS+PC
Mounting Method: Hanging, Wall Mounted, Pole Mounted
RoHs, Reach, UL-94-V0 compliance
Package: Every piece in a paper box, full equiped or empty


Pigtail Inspection Standard:

1. Endface: IEC-61300-3-35
2. Optical Performance: IEC-61300-3-34
3.Mechanical Tensile: IEC-61300-2-6,IEC-61300-2-4
4.Durability: IEC 61300-2-2
5.Vibration: IEC 61300-2-1
6.Torision: IEC 61300-2-5
7.Drop:IEC 61300-2-12 (Method A)
8.Static Load: IEC 61300-2-42
9.Flex: GR‐326‐CORE, 4.4.3.2
10.Cold Test: IEC 61300-2-17
11.Dry Heat: IEC 61300-2-18
12.Damp Heat: IEC 61300-2-19
13.Temperature Change: IEC 61300-2-22
14.Damp Heat: IEC 60068-2-30
15.Salt Mist: IEC 61300-2-26
16.Humidity Cycling: IEC 61300-2-21
17.Dust:IEC 61300-2-27
18.Cable Bend:IEC 60794-1-21


80X80
