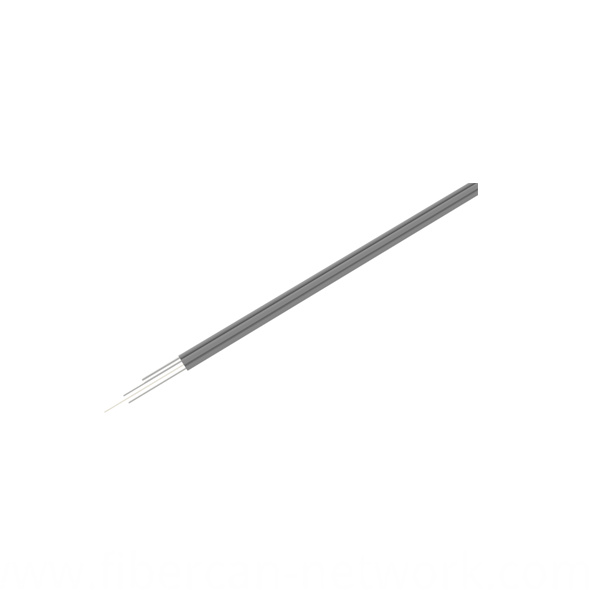

Figure 8 Fiber Optic Drop Cable(Messenger Wire)

Product Attributes

Model No.

:

Figure 8 Fiber Optic Drop Cable(Messenger Wire)

Brand

:

Fibercan

Place Of Origin

:

China

Packaging & Delivery

Selling Units: Piece/Pieces

Package Type: Carton

Product Description

Cable Diametre: 5.3*2.0mm

Fiber Counts: 1 Fiber,2 Fiber, 4 Fiber

Strength Member: 0.4 mm ± 0.05 * 2 galvanized steel wire

Messenger Wire: 1.1 mm ± 0.1 glued galvanized steel wire

Sheath Type: Low Friction LSZH, PVC, OFNR, OFNP, PE

Sheath Color: Grey, Black

Fiber Type: Singlemode G652D, Singlemode G657A1, Singlemode G657A2, Singlemode G657B3

Fiber Brand: Corning, YOFC, OFS, Draka, Fiberhome, Fujikura Optional

Mode Field Diametre: 8.6±0.4(Corning Fiber) or 8.8±0.4(YOFC Fiber)

Attenuation: @1310nm ＜0.36dB, @1550nm＜0.22dB

Tensile Short Term: 600N IEC 60794-1-21 E1

Tensile Long Term: 300N IEC 60794-1-21 E1

Crush Short Term：2200N

Crush Long Term：1000N

Min. bending radius (mm)：(Static) 30mm (Dynamic) 60mm

Operating temperature range: from -20°C to + 65°C

Looking for ideal Figure 8 Fibre Optic Drop Cable Manufacturer & supplier ? We have a wide selection at good prices to help you get creative. All the Figure 8 Optical Fiber Drop Cable are quality guaranteed. We are China Origin Factory of Figure 8 Optical Fibre Drop Cable. If you have any question, please feel free to contact us.
